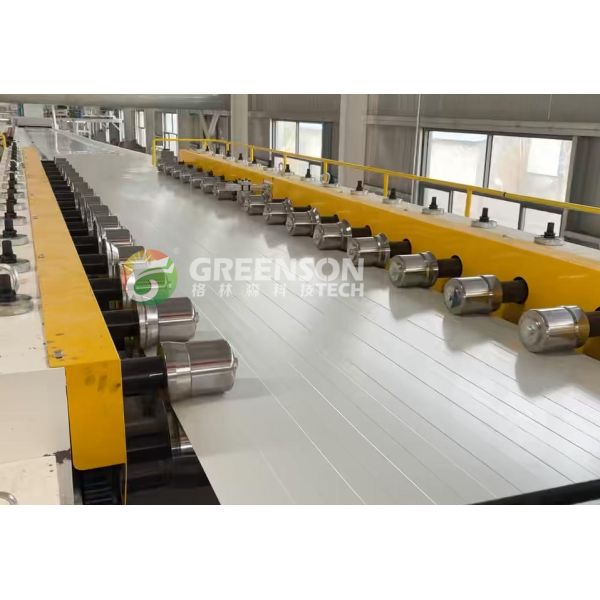

Fully Automatic PIR Sandwich Panel Production Line For 40-300 Mm Thickness And 950-1200 Mm Width Roof & Wall Panels

Brand Name : Greenson

Place of Origin : HEBEI

MOQ : 1

Price : $790000

Payment Terms : L/C,T/T

Delivery Time : 150days

Product Name : Fully Automatic PIR Sandwich Panel Production Line For Roof & Wall

Keyword : Continuous Insulation PU PIR Sandwich Board Panels Production Machine Line

Color : Customer's Requirement

Feature : Full-Automatic

Packaging Details : Plastic film

Port of dispatch : Tianjin

Core Components : PLC, Engine, Bearing, Motor, Pump

Key Selling Points : Easy To Operate

Application : roof and wall

Voltage : 380V 50Hz 3phases(changeable as needs)

Contact Now

Fully Automatic PIR Sandwich Panel Production Line For Roof & Wall
Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

The entire line is independently developed, processed, and assembled, using solid materials with high safety standards. Equipped with precision machining equipment, it features the flattest dual-track plates in the country to ensure optimal quality and efficiency. The fully automated system reduces labor costs by at least 50%.

Production Process
  • Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
  • Precision low-speed metering pump with computer-controlled frequency regulation
  • Accurate dosing and stepless speed adjustment capabilities
Product Capabilities
  • Produces various flat and corrugated sheet types
  • Sandwich panels: thickness 40-300 mm, width 950-1200 mm
  • High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
  • Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials
Technical Specifications
Material Type Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness 0.3-0.8 mm
Material Width ≤1250 Mpa
Suitable Panel Length 2000-18000 mm
Suitable Panel Width 500-1200 mm
Suitable Panel Thickness 30-250 mm (excluding corrugation height)
Production Speed 3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor 12000-42000 mm
Work Pressure on Pouring Foam 150-200 Bar
Total Power 660 kW / 300 kW
Total Dimensions 130000 × 15000 × 6000 mm (Length × Width × Height)
